VenturaFlex – Patented ventilation & power module, suitable for VW T4
- Belüftung
- 230 V Landstromanschluss
- RCD-Schutzschalter
- Solarpanel Anschluss
- Einfache Montage
- Integriertes & dezentes Fliegengitter
- Kein Werkzeug
Product information "VenturaFlex – Patented ventilation & power module, suitable for VW T4"
VenturaFlex – Ventilation and power module
VenturaFlex is a ventilation and power module implemented as a patented system solution and intended for vehicles such as the VW T4. The module is inserted into the guide of the sliding window (driver’s side) and positioned there.
Installation is carried out without any modification to the bodywork. The sliding window remains in place, and drilling or permanent modifications to the vehicle are not intended.
VenturaFlex combines several functions within a modular design. These include a ventilation opening as well as connections for an external power supply and optional consumers.
System features
- Patented system solution
- Installation via the sliding window guide (driver’s side)
- No bodywork modifications intended
- Designed as a temporarily installable module
Electrical connections
The system features a CEE inlet for external power sources as well as an additional connection for optional consumers, such as solar panels or external devices.
An integrated RCD module is part of the system. It is designed as a component for residual current detection.
Ventilation function
VenturaFlex enables air exchange via the sliding window. An integrated insect screen is part of the module. The ventilation opening is designed so that precipitation does not enter the interior directly.
Design
- Material and system design intended for vehicle use
- Modular construction
- Designed for temporary use
A detailed description of use and intended operation is included in the user manual:
https://wiki.deltagarage.de/doku.php?id=vwt4schiebefenster:gebrauchsanleitung
⚠ Important safety notice regarding the use of the VenturaFlex system
The VenturaFlex system is a mobile adapter for temporary power supply via a CEE camping socket with integrated residual current device (RCD). It does not replace a permanently installed shore power connection in accordance with DIN VDE 0100-721.
For permanent use, an electrically conductive connection of the protective conductor (PE) to the vehicle body is required. This connection may only be established by a qualified electrician.
❗ Warning:
Improper use may result in electric shock or property damage. The applicable standards and regulations for electrical installations in leisure vehicles must be observed (e.g. DIN VDE 0100-721, DIN VDE 0100-708).
| WEEE-Reg.-Nr.: | DE 61303276 der AS-Schwabe GmbH |
|---|---|
| Passend für Fahrzeugtyp: | VW T4 |
| Passend für Baujahr: | Bj. 01.1990 - 12.2003 |
| Einbauseite: | Links (Fahrerseite) |
| Material: | Aluminium |
| Farbe: | Schwarz |
| Beschichtung: | Pulverbeschichtet |
| Nennstrom: | 16 A |
| Steckerausführung: | CEE-Einspeisungsstecker Made in Germany |
| Kupplungsausführung: | Schuko Steckdose für Außenbereich - Made in Germany |
| Kabellänge: | ca. 3 m |
| Kabeltyp: | Gummikabel H07RN-F |
| Aderanzahl und Querschnitt: | 3 x 1,5 mm² (3G1,5) |
Angaben zum Hersteller
Delta Garage UG (haftungsbeschränkt)
Pfaffenhofener Str. 3A
85302 Gerolsbach
Deutschland
Telefon, WhatsApp, Telegram: 0160 94663915
E-Mail: service@deltagarage.de
Kontaktformular: ticket.deltagarage.de
Hinweise zur Produktsicherheit
Unsere Reparaturbleche und Kunststoffteile für den KFZ-Bereich – werden unter höchsten Qualitätsansprüchen gefertigt:
- Die Reparaturbleche entstehen in Zusammenarbeit mit spezialisierten Fachbetrieben, die in unserem Auftrag nach unseren Konstruktionsvorgaben produzieren.
GPSR-Informationen zu Reparaturblechen anzeigen
- Die Kunststoffteile werden direkt bei uns im Haus im 3D-Druckverfahren hergestellt und unterliegen strengen internen Prüfprozessen.
GPSR-Informationen zu Kunststoffteilen anzeigen
Beim Auswechseln und Einbau von Ersatzteilen müssen die vom Hersteller vorgegebenen technischen Daten eingehalten werden. Es wird ausdrücklich empfohlen, den Einbau durch qualifiziertes Fachpersonal vornehmen zu lassen. Dies gilt auch für Ersatzteile, deren Einbau nur wenige Handgriffe benötigt. Produkte werden in der Regel ohne Montageanleitung geliefert.
Login
5 reviews
2 June 2024 13:50
Klasse
Bin mega zufrieden, super Idee und Klasse umgesetzt, sehr nützliche Erweiterung.
15 February 2024 12:47
Das war einfach
Eigentlich wollte ich ins Blech ein Loch für die Steckdose bohren, aber damit hat sich das Thema erledigt! Klasse Idee bin total zufrieden. Was ich noch gern hätte, eine Lüftung für die Schiebetür im gleichen Design jedoch ohne die Steckdosen. Mach weiter so! Grüße Alex
12 February 2024 12:40
Passt perfekt.
Das Teil sitzt super. Passt perfekt. Super Service. Danke.
11 February 2024 11:52
Super Produkt!
Bis jetzt nur ausgepackt und eingebaut, sitzt richtig gut und sieht klasse aus! Weiteres kann ich noch nicht sagen. Preislich schon ne Hausnummer, aber für das Produkt mit Sicherheit absolut fair.
9 February 2024 21:19
Ausgezeichnete Qualität
Die Lieferung kam wie versprochen und das Teil ist sogar besser, als ich erwartet habe. Es passt perfekt und die Verkabelung ist auch schon dran.
Bin absolut begeistert
VW T4 Sliding Window Vent with Solar and CEE Power Supply Connector for Shore Power
CEE Plug
With this connection, you can conveniently supply your vehicle with 230V shore power without damaging the body of your vehicle. Perfect for the campsite.
DC Connection
This connection allows the use of external solar panels or the connection of external consumers, enabling you to flexibly adapt your power supply to your needs.

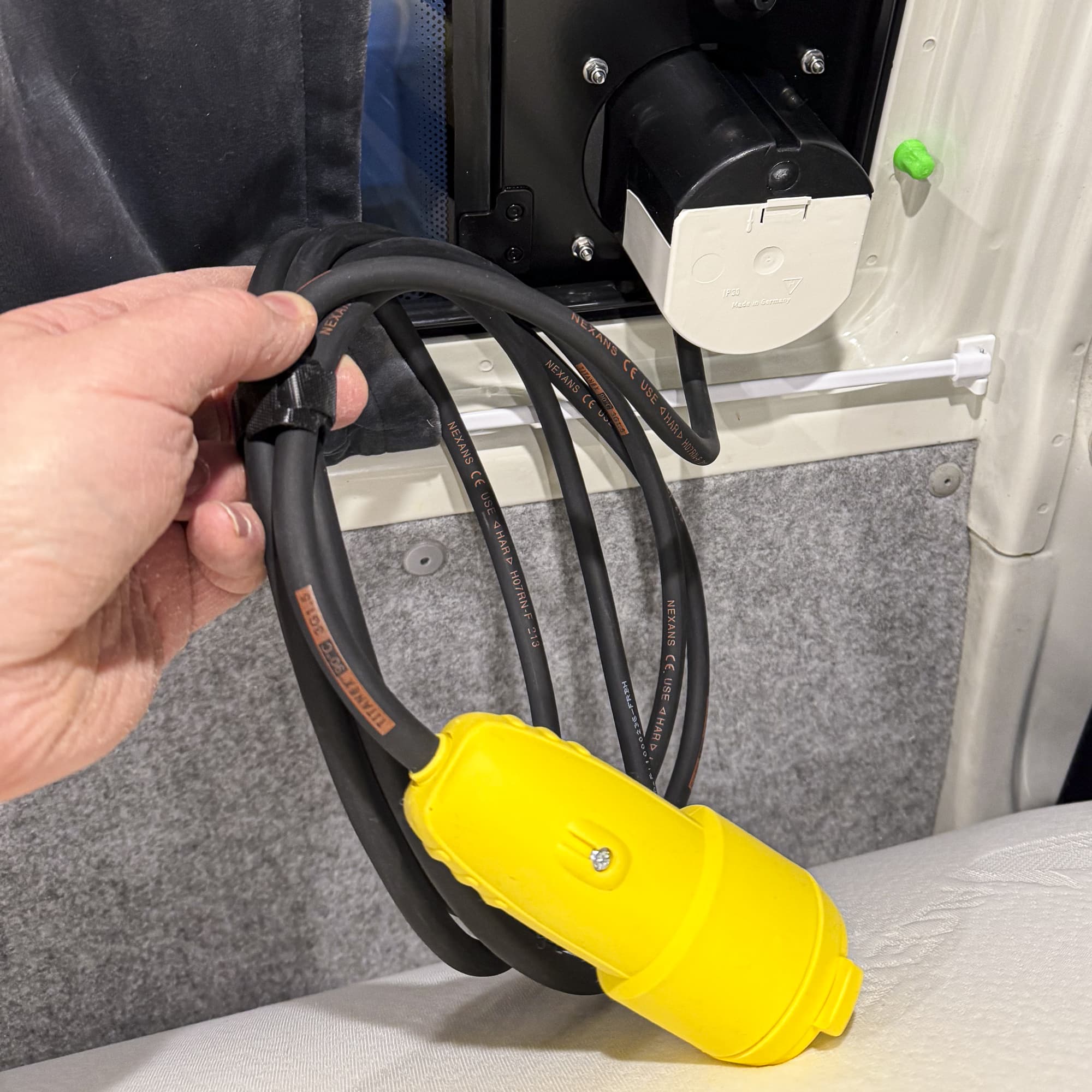

VenturaFlex Pre-Assembled
The pre-assembled version of VenturaFlex includes an external CEE inlet plug (IP44) with grounding protection and an internal Schuko (IP44) socket with a 3m long cable.
Additional VenturaFlex Variants
The VenturaFlex system is available not only for the sliding window on the left side of the VW T4 but also for the right side. However, if you have a different application in mind, such as connecting an external air heater, you can also purchase the ventilation panel without sockets.
